BERGHEIM (DE) - 2015-12-22 06:00:11 - Magnitude 2.4
Last update : 2016-11-24 12:52:20 Belgian time

Main parameters

Date and time 2015-12-22 06:00:11 UTC
2015-12-22 07:00:11 Belgian time
Type Known induced event
Magnitude ML 2.4
Maximal intensity IV
Region BERGHEIM (DE)
Epicentral coordinates 50.978° N, 6.662° E Uncertainty ± 3.3 km
Depth of hypocenter 1.0 ± 2.0 km

Data source : BNS (Cologne University)

Location map

Quake measurements

Measurements by the Belgian seismic network
Station Epicentral
distance (km)
P-Wave arrival (hh:mm:ss.ss) S-Wave arrival (hh:mm:ss.ss) Maximal ground
displacement (nm)
Code Place
TNL TERNELL 57 06:00:21.48 06:00:29.03 99.1
MEMS MEMBACH 62 06:00:22.12 06:00:29.85 89.3
MRG MONT RIGI 66 06:00:23.14 06:00:31.64 87.5
HOU HOUVEGNEZ 84 06:00:26.53 06:00:36.26 25.8
LCH LA CHARTREUSE 84 06:00:27.00 06:00:36.88 75.7
MOLT MOL 113 06:00:29.67 06:00:46.37 -
KLB KALBORN 105 06:00:30.31 - -
CLA CLAVIER 114 06:00:31.09 06:00:47.79 44.6
VIA VIANDEN 121 06:00:33.28 06:00:49.86 36.7
GES GESVES 129 06:00:33.91 06:00:49.86 45.5
WLF WALFERDANGE 151 06:00:36.55 06:00:55.15 -
MRD MAREDSOUS 153 06:00:37.26 06:00:56.79 -
DOU DOURBES 176 06:00:40.60 06:01:01.47 44.6

Macroseismic

Data
Total number of responses 194
Intensity I 27
Intensity II 13
Intensity III 60
Intensity IV 55
Intensity V 27
Intensity VI 11
Intensity VII 1

Attention! The intensities derived from the macroseismic enquiry are raw unverified data.

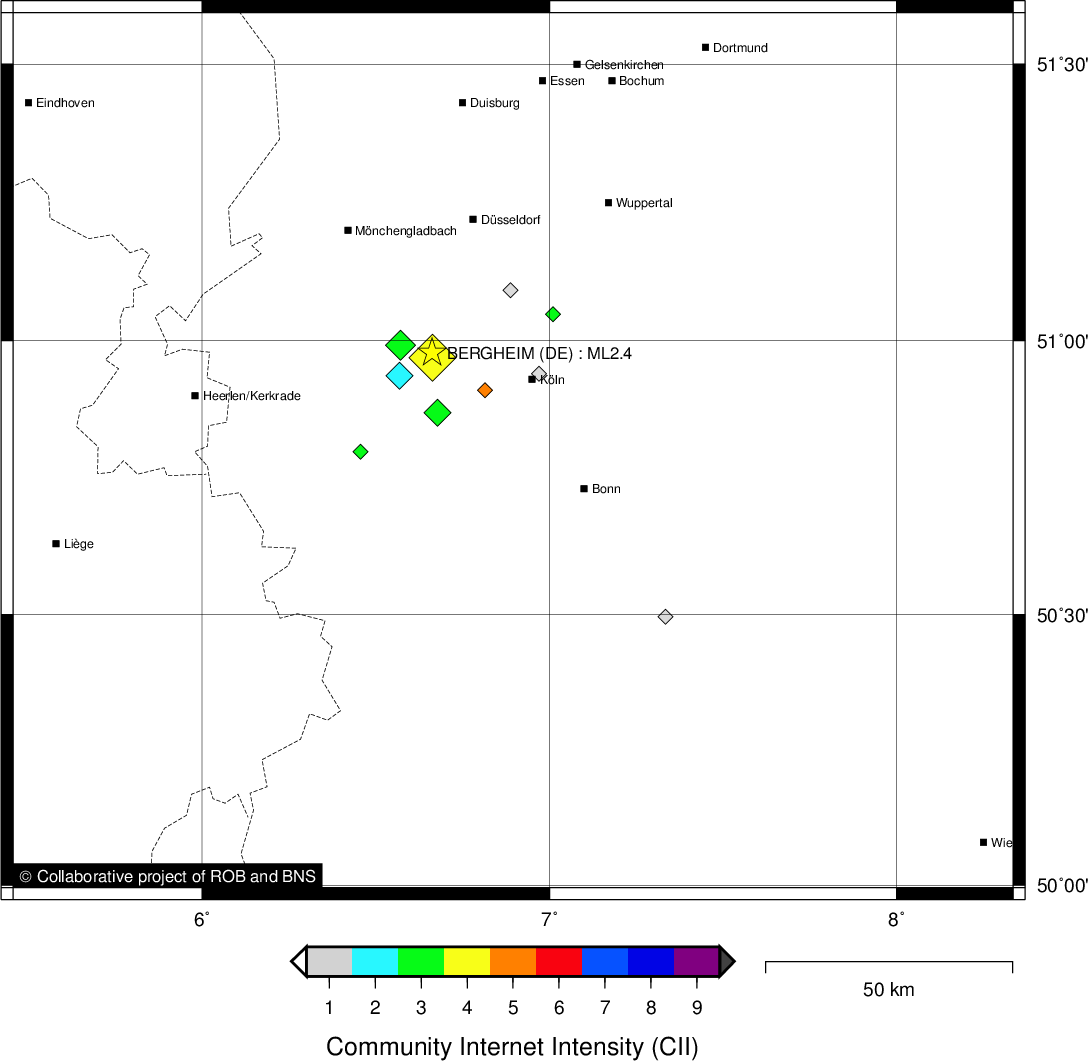

Map

Data policy

Please read on this notice to learn more about our data policy.
